4Ports Hi-Fi HDMI Switcher V1.3b

HDMI 4 PORT AUDIO SWITCH SPLITTER

P/N: AVDU4000

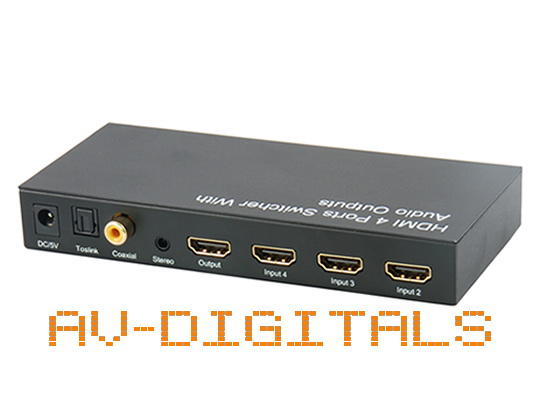

HDMI 4 Port Switcher with Audio Output

PN:AVDU4HIFI

Introduction

It is known that the most benefit of the HDMI is to integrate the audio and video signals together. This integration makes all of us enjoy the high quality of the audio and video effect. Awfully the bad effect of the HDTV audio deprives the basic right of the enthusiasts. Fortunately, we develop this new product eventually, not only to meet the ideal image of the HDTV but also to meet the need of the enthusiasts’ requirement for audio. Because it separates the audio signal from the HDMI interface, then transmit to the amplifier by Stereo Toslink or COAX (RCA).

This Switcher has one input port on the front panel, which reduced the switcher to an ideal small size and provides convenience for users to connect portable devices.

Features

This HDMI Audio Splitter has many features that enable it to perform in a superior manner. Among those features you will find:

1One input port on the front panel is specialized for portable devices

2Support digital audio output simultaneously : Stereo, Toslink and COAX

3Support HDMI1.3b

4Support highest video resolution 1080p.

5Support 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth.

6Support 12bit per channel (36bit all channel) deep color.

7Support HDCP.

8Support uncompressed audio such as LPCM.

9Support compressed audio such as DTS Digital, Dolby Digitalincluding DTS-HD and Dolby True HD.

SPECIFICATIONS

Signal Inputs/Output

Input DDC Signal

5 volts p-p (TTL)

Output S/PDIF Signal

SPDIF and COAX

Maximum Single Link Range

1920X1080p

Output Video

HDMI 1.3b

Operating Frequency

Vertical Frequency Range

50/60Hz

Video Amplifier Bandwidth

2.25Gbps/225MHz

Resolutions(HDTV)

Interlaced(50&60Hz)

480i,576i,1080i

Progressive(50&60Hz)

480p,576p,720p,1080p

Mechanical

Size(L-W-H)

155×70×25mm

Weight(Net)

265g

Warranty

Limited Warranty

1 Year Parts and Labor

Environmental

Operating Temperature

0 to +70

Operating Humidity

10% to 80 % RH (no condensation)

Storage Temperature

-10 to +80

Storage Humidity

Power Requirement

External Power Supply

5V DC @2A

Power Consumption (max)

5 W

Regulatory Approvals

Converter Unit

FCC,CE,UL

Power Supply

UL,CE,FCC

Accessories Adapter

AC Power Adapter

US standard, UK standard and EURO so on

User Manual

Note: Specifications are subject to change without notice. Weight and dimensions are approximate.

Package Contain:

AVDU4000 4 port Audio Switch

Power adapter

Remote control
