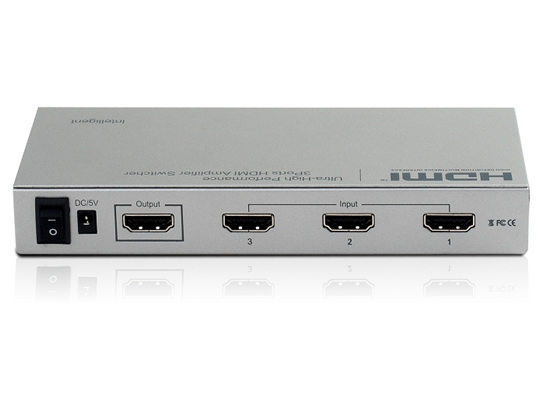

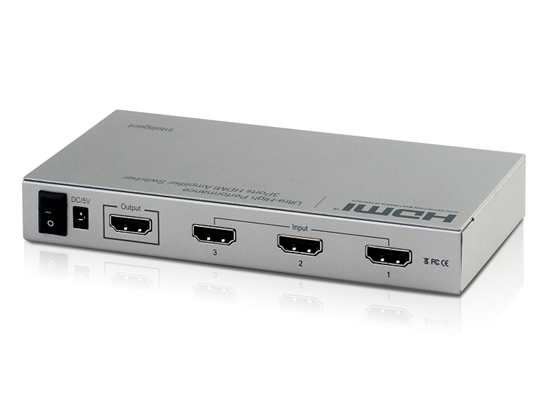

HDMI Amplifier
Switcher
P/N:U300IR
INTRODUCTION
This kind of the HDMI Amplifier Switcher not only has the IR remote
mechanical function, but also has the intelligent function.
It can be used by controlling the IR remote or by hands. Fortunately,
it also has been upgraded to be intelligent.
Firstly once supplied with power, the first input has priority, that is
to say the former one has priority. If anyone is worked, it will choose
input1 automatically.
Secondly once some input is plug, the switcher will choose this input
immediately.
Thirdly, once you pull out the working input, it will choose the
another input depending on the sequence, that is to say the former one
has priority.
This kind of HDMI Amplifier Switcher routes high definition video (in
multiple resolutions up to 1080p) and digital audio from any one of the
several sources to display units. All inputs accommodate the
connections of the high definition video sources simultaneously, such
as satellite systems and HD DVD players. The output sends the high
definition audio/video signals to a high definition display.
FEATURES
The series of the HDMI Amplifier Splitter have many features that
enable them to perform in a superior manner. Among those features you
will find:
1)Support 12-bit Deep Color, full 1080p
2)Multifunctional on switching :intelligent or mechanical
3)Supports with HDMI1.3b.
4)High performance up to 2.5Gbps
5)Supports 25Meters HDMI Cable on both ends of the Switcher (1080p
25M+20M, 1080i 25M+25M)
6)Maintains high resolution video - beautiful, sharp HDTV resolutions
up to 1080p, 2k, 1440p graphics and computer resolutions up to 1920 x
1200 are easily achieved
7)Discrete IR remote (included)
SPECIFICATIONS
|
Signal Inputs/Output
|
|
|
HDMI Connector
|
type A 19 pin female
|
|
Input DDC Signal
|
5
volts p-p (TTL)
|
|
Maximum Single Link Range
|
1080p/1600 x 1200
|
|
Operating Frequency
|
|
|
Video Amplifier Bandwidth
|
1.65Gbps/165MHz
|
|
Frequency
|
Up to165MHz
|
|
Resolutions(HDTV)
|
|
|
Interlaced(50&60Hz)
|
480i,576i,1080i
|
|
Progressive(50&60Hz)
|
480p,576p,720p,1080p
|
|
Mechanical
|
|
|
Size(H-W-D)
|
110mmW x 25mmH x 260mmD
|
|
Weight(Net)
|
0.854KGs
|
|
Warranty
|
|
|
Limited Warranty
|
1 Year Parts and Labor
|
|
Environmental
|
|
|
Operating Temperature
|
0 ℃ to +70℃
|
|
Operating Humidity
|
10% to 85 % RH (no condensation)
|
|
Storage Temperature
|
-10℃
to +80℃
|
|
Storage Humidity
|
5% to 90 % RH (no condensation)
|
|
Power Requirement
|
|
|
External Power Supply
|
5V DC@2A
|
|
Power Consumption
|
10 watts (max)
|
|
Regulatory Approvals
|
|
|
Converter Unit
|
FCC,CE,UL
|
|
Power Supply
|
UL,CE,FCC
|
|
Accessories Adapter
|
|
|
AC Power Adapter
|
US standard, UK standard and so on
|
|
User Manual
|
|
Note: Specifications are
subject to change without notice.
|
