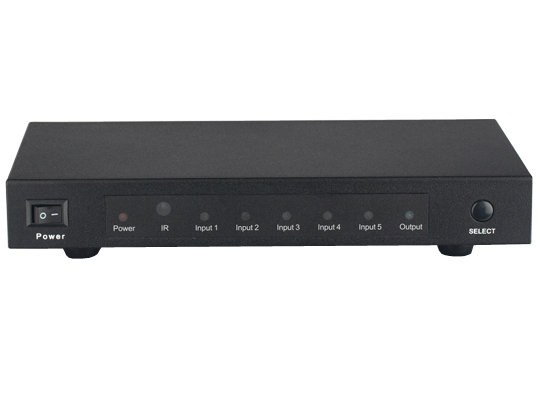

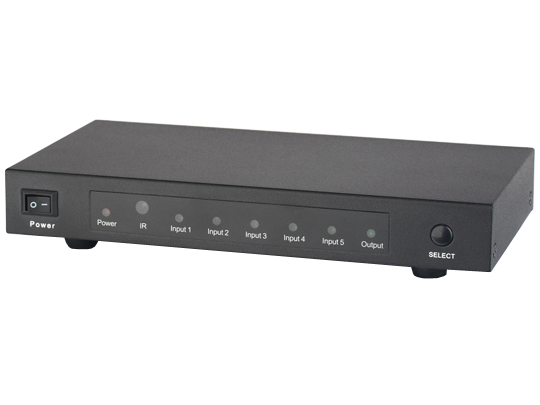

HDMI 5Ports
Switch(5X1)
P/N:HSW0501
INTRODUCTION
The 5x1 HDMI Switcher routes high definition video (in
multiple resolutions up to 1080p) and digital audio from
any one of the five sources to display unit.
Five inputs accommodatethe simultaneous connection of up
to five high definition video sources, such as satellite
systems and HD DVD players.
The output sends the high definition audio/video signals
to a high definition display.
Switching is done via the IR remote that is provided
with the unit.
FEATURES
* Switch easily between any five HDMI sources
* Extends the range of HDMI compliant device
by equalizing and re-clocking the HDMI signal
* Maintains high resolution video - beautiful, sharp
HDTV resolutions up to 1080p, 2k, and computer
resolutions
up to 1920 x 1200 are easily achieved
* Discrete IR remote (included)
* HDMI pass-through
* HDCP pass-through
CONNECT AND OPERATE

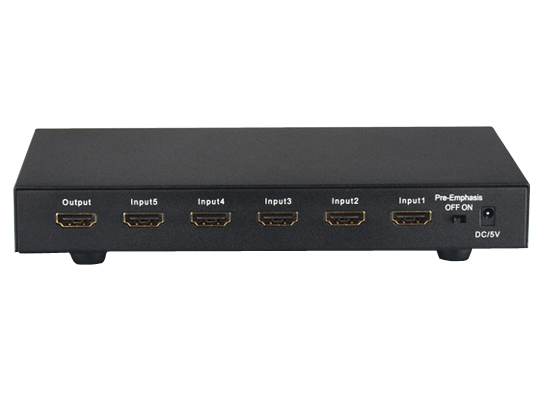

1) Connect the HDMI input source into HSW0501. (Input
cables are optional)

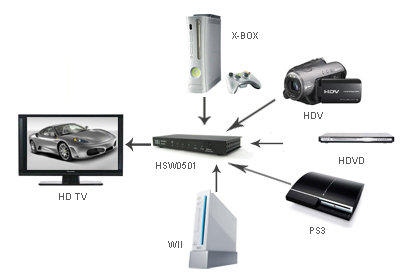

*Please refer to connection diagram section.
2) Insert the DC side of 5v power supply into HSW0501
and then connect the
AC side of the power supply into the wall outlet.
3) Turn on the power.
Attention: Insert / Extract cable gently.
SPECIFICATIONS
|
Signal Inputs/Output |
|
|
Input Video Signal |
0.5-1.0 volts p-p |
|
Input DDC Signal |
5 volts p-p (TTL) |
|
Maximum Single Link Range |
1920X1200, 1080P |
|
Output Video |
HDMI 1.3b + HDCP 1.0/1.1 |
|
Video format supported |
|
|
VGA |
640x480,800x600,1024x768,1920x1200 |
|
DTV/HDTV |
480i/576i/480p/576p/720p/1080i/1080P |
|
Digital Signal I/O |
|
|
HDMI Compliance |
HDMI 1.3b |
|
Operating Frequency |
|
|
Video Amplifier Bandwidth |
2.5Gpbs/250MHz |
|
Frequency |
Up to250MHz |
|
Resolutions(HDTV) |
|
|
Interlaced(50&60Hz) |
480i,576i,1080i |
|
Progressive(50&60Hz) |
480p,576p,720p,1080p |
|
Mechanical |
|
|
Size(H-W-D) |
Different models have different
sizes |
|
Weight(Net) |
Different models have different
weight |
|
Warranty |
|
|
Limited Warranty |
1 Year Parts and Labor |
|
Environmental |
|
|
Operating Temperature |
0
℃
to +70℃ |
|
Operating Humidity |
10% to 85 % RH (no condensation) |
|
Storage Temperature |
-10℃
to +80℃ |
|
Storage Humidity |
5% to 90 % RH (no condensation) |
|
Power Requirement |
|
|
External Power Supply |
5V DC@2A |
|
Regulatory Approvals |
|
|
Converter Unit |
FCC,CE,UL |
|
Power Supply |
UL,CE,FCC |
|
Accessories Adapter |
|
|
AC Power Adapter |
US standard, UK standard and so
on |
|
User Manual |
|
PACKAGE
CONTENTS
* The 5x1 HDMI Switcher
* Remote control
* 5VDC Power Supply
* User's Manual
Easytex Technology Limited reverse the right to change the
outlook design of the switch without notice.
|
