4x1 HDMI
Switcher
P/N:HSW0401
INTRODUCTION

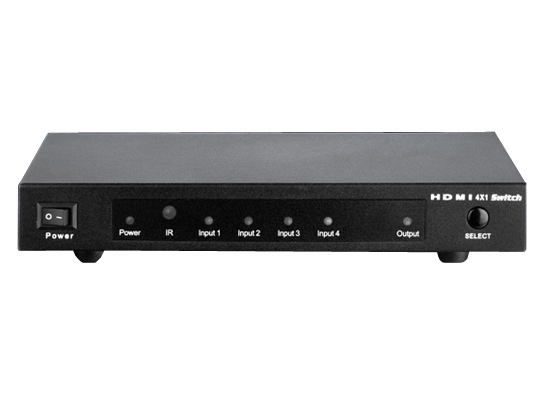

The 4x1 HDMI Switcher routes high definition video
(in multiple resolutions up to 1080p)
and digital audio from any one of the four sources
to display units.
Four inputs accommodate the connections of four high
definition video sources simultaneously, such as
satellite systems and HD DVD players.
The output sends the high definition audio/video
signals to a high definition display. Switching is
done via the IR remote that is provided with the
unit.FEATURES
Switches easily between any four HDMI sources
Extends the range of HDMI compliant device by
equalizing and re-clocking the HDMI signal
Maintains high resolution video - beautiful, sharp
HDTV resolutions up to 1080p, 2k, and computer
resolutions up to 1920 x 1200 are easily achieved
Discrete IR remote (included)
HDMI pass-through
HDCP pass-through
SPECIFICATIONS:
|
Signal Inputs/Output |
|
|
Input Video Signal |
0.5-1.0 volts p-p |
|
Input DDC Signal |
5 volts p-p (TTL) |
|
Maximum Single Link Range |
1920X1200, 1080P |
|
Output Video |
HDMI 1.3b + HDCP 1.0/1.1 |
|
Video format supported |
|
|
VGA |
640x480,800x600,1024x768,1920x1200 |
|
DTV/HDTV |
480i/576i/480p/576p/720p/1080i/1080P |
|
Digital Signal I/O |
|
|
HDMI Compliance |
HDMI 1.3b |
|
Operating Frequency |
|
|
Video Amplifier Bandwidth |
2.5Gpbs/250MHz |
|
Frequency |
Up to250MHz |
|
Resolutions(HDTV) |
|
|
Interlaced(50&60Hz) |
480i,576i,1080i |
|
Progressive(50&60Hz) |
480p,576p,720p,1080p |
|
Mechanical |
|
|
Size(H-W-D) |
Different models have
different sizes |
|
Weight(Net) |
Different models have
different weight |
|
Warranty |
|
|
Limited Warranty |
1 Year Parts and Labor |
|
Environmental |
|
|
Operating Temperature |
0
℃
to +70℃ |
|
Operating Humidity |
10% to 85 % RH (no condensation) |
|
Storage Temperature |
-10℃
to +80℃ |
|
Storage Humidity |
5% to 90 % RH (no condensation) |
|
Power Requirement |
|
|
External Power Supply |
5V DC@2A |
|
Regulatory Approvals |
|
|
Converter Unit |
FCC,CE,UL |
|
Power Supply |
UL,CE,FCC |
|
Accessories Adapter |
|
|
AC Power Adapter |
US standard, UK standard and
so on |
|
User Manual |
|
|
