HDMI
Switch-Splitter 3X2 (mirror)
P/N:HSS0302
INTRODUCTION

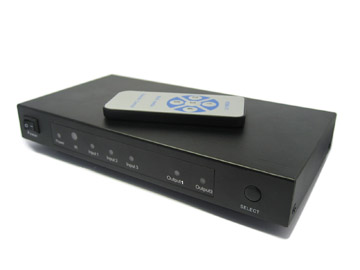

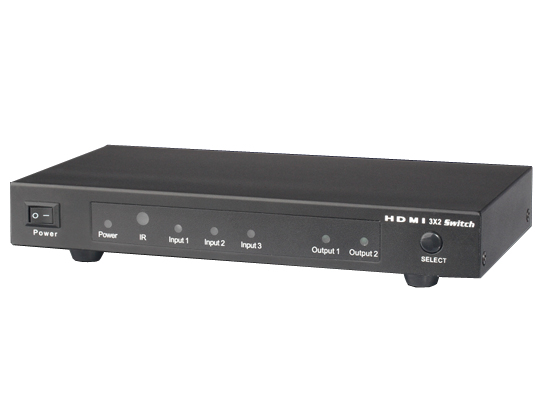

The 3x2 HDMI switch splitter allows three HDTV HDMI
devices to be switched easily into two HDTV HDMI
compatible monitors or projectors. Simply connectting
the HDTV displays to the HSS0302 display outputs,you may
enjoy what you want.
It works with HD-DVD players, TiVo systems, HT PCs, and
satellite set top boxes that connect to an HDMI display.
Every source is accessible at all times by any display
by selecting it with an IR remote.
FEATURES
1.Easy to Use:Install in seconds,no need for setting
2.Distribution: Drives two HDMI outputs at the
same time, quantity of HDMI outputs increases
enormously by stacking HSS0302
3.Cascaded:Large distribution achieved by
cascading HSS0302
4.HDCP compliant Switch easily between any three HDMI sources
PACKAGE CONTENTS
1)Main unit. P/N_HSS0302
2)5V DC Power Supply.
3)User's Manual.
CONNECT AND OPERATE
1)Connect the HDMI input source into HSS0302.
*please refer to the connection diagram section.
2)Insert the DC side of 5v power supply into HSS0302 and
then connect the AC side of the power supply into the
wall outlet.
3)Turn on the power.
SPECIFICATIONS
Video Amplifier Bandwidth: …………………………2.5Gbps/250MHz
Input Video Signal: …………………………………1.2 volts p-p
Input DDC Signal:………………………………………5 volts p-p (TTL)
Single Link Range: ……………………………………1080p/1920 x 1200
HDMI Connector: ………………………………………type A 19 pin female
Power Supply: …………………………………………5V DC
Power Consumption: ……………………………………10 watts (max)
Dimensions………………………………………………100mmW x 27mmH x 192mmD |
