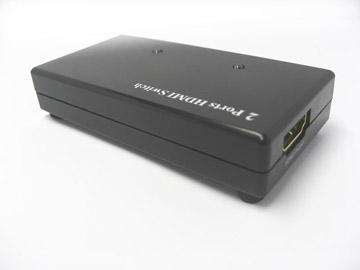

HDMI 2Ports Switch(2X1)
P/N:HSW0201
INTRODUCTION
The 2x1 HDMI Switcher routes high definition video
(in multiple resolutions up to 1080p) and digital
audio
from any one of the two sources to display unit.

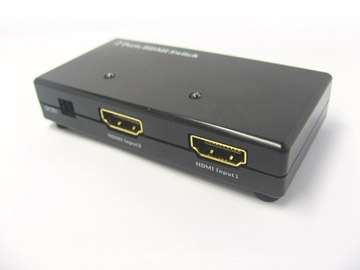

Two inputs accommodate the simultaneous connection
of up
to two high definition video sources, such as
satellite systems
and HD DVD players. The output sends the high
definition
audio/video signals to a high definition display.
Switching is done via it self automatically when
signal present on the ports.
FEATURES
* Switch easily between any two HDMI sources
automatically.
* Maintains high resolution video - beautiful, sharp
HDTV resolutions
up to 1080p, 2k, 1440p graphics and computer
resolutions
up to 1920 x 1200 are easily achieved
* No external power needed.
* Up to 24 bit colour depth.
* Up to DTS Master Audio and Dolby Digital TrueHD
support
* HDMI pass-through
* HDCP pass-through
* Compatible with HDMI1.3 devices.
CONNECT AND OPERATE
1) Turn off the TV set and HDMI devices. Connect the
HDMI
cable from input source into HSW0201 and output to
TV set. (Input cables are optional)

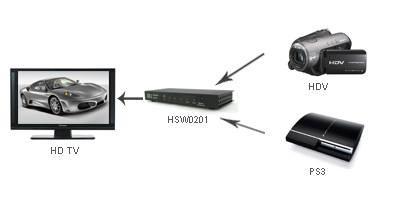

*Please refer to connection diagram section.
2) Turn on the output devices and TV set.
3) When you display the Input 1 signal, you don’t
need to care
the state of the device in Input 2. When you use the
Input 2,
you have to switch off the power of the device in
Input 1.
4) For too long HDMI cable (over 5meters), it is
recommended to

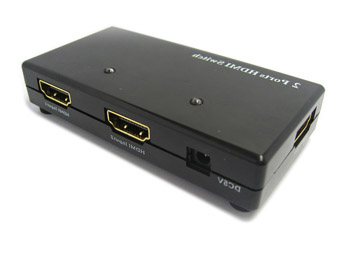

give a 5Vdc power supply (optional) to the HDMI
switcher unit.
Attention: Insert / Extract cable gently.
SPECIFICATIONS
Operating temperature range…………………………0 to +70℃
Operating humidity range………………………………5 to 90 % RH (no
condensation)
Video Amplifier Bandwidth……………………………2.5Gbps/250MHz
Input Video Signal………………………………………0.5-1.0 volts p-p
Input DDC Signal…………………………………………5 volts p-p (TTL)
Maximum Single Link Range……………………………1920 x 1200,
1080P
Video format supported:
VGA :
………………………………………………………640x480,800x600,1024x768,1920x1200
DTV/HDTV:
…………………………………………………480i/576i/480p/576p/720p/1080i/1080P
Output Video………………………………………………HDMI1.3+HDCP1.0/1.1
Power Consumption…………………………………………5Watts (max.)
Power Supply………………………………………………5VDC (optional)
Dimensions…………………………………………………85mmW x 15mmH x 43mmD
Net Weight…………………………………………………0.05KGs
PACKAGE CONTENTS
* The 2x1 HDMI Switcher
* User's Manual
* 5VDC Power Supply (optional)
|
