HDMI
Distribution Amplifier(1X2)
P/N:HSP0102
INTRODUCTION

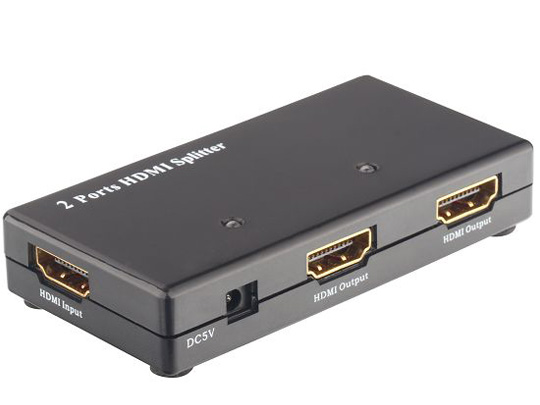

-The HSP0102 is a two outputs HDMI splitter
-It distributes the HDMI input into two identical
outputs.
-These two outputs are synchronized.
- HSP0102 has the ability of buffering and amplifying
-Series connection of HSP0102 achieves long distance
transmission of HDMI signal of more than 15 meters
-When two or more HSP0102 are cascaded
they can be used to create a larger distribution
-HSP0102 offers solutions for HDTV retail and show site
-HDTV, STB, DVD and Projector factory, noise
-space and security concerns, data center control
-information distribution, conference room presentation
-school and corporate training environments.
-FEATURES
-Easy to Use: Install in seconds, no need for setting
-Distribution: 2 identical HDMI outputs
-Cascaded: Large distribution achieved by cascading
HSP0102
-HDCP compliant.
CONNECT AND OPERATE
-Connect the HDMI input source into HSP0102. (Input
cables are optional)
-please refer to connection diagram section.
-Insert the DC side of 5v power supply into HSP0102 and
then connect the
-AC side of the power supply into the wall outlet.
-Turn on the power.
SPECIFICATIONS
|
Signal Inputs/Output |
|
|
Input Video Signal |
0.5 -1.0 volts p-p |
|
Input DDC Signal |
5 volts p-p (TTL) |
|
Maximum Single Link Range |
1920X1200, 1080P |
|
Output Video |
HDMI + HDCP1.0/1.1 |
|
Video format supported |
|
|
VGA |
640x480,800x600,1024x768,1920x1200 |
|
DTV/HDTV |
480i/576i/480p/576p/720p/1080i/1080P |
|
Digital Signal I/O |
|
|
HDMI Compliance |
HDMI |
|
Operating Frequency |
|
|
Frequency |
Up to165MHz |
|
Resolutions(HDTV) |
|
|
Interlaced(50&60Hz) |
480i,576i,1080i |
|
Progressive(50&60Hz) |
480p,576p,720p,1080p |
|
Mechanical |
|
|
Size(H-W-D) |
Different models have different
sizes |
|
Weight(Net) |
Different models have different
weight |
|
Warranty |
|
|
Limited Warranty |
1 Year Parts and Labor |
|
Environmental |
|
|
Operating Temperature |
0℃
to +70℃ |
|
Operating Humidity |
10% to 85 % RH (no condensation) |
|
Storage Temperature |
-10℃
to +80℃ |
|
Storage Humidity |
5% to 90 % RH (no condensation) |
|
Power Requirement |
|
|
External Power Supply |
5V
DC@2A,except 1*4(2.5A)1*8(3A) |
|
Regulatory Approvals |
|
|
Converter Unit |
FCC,CE,UL |
|
Power Supply |
UL,CE,FCC |
|
Accessories Adapter |
|
|
AC Power Adapter |
US standard, UK standard and so
on |
|
User Manual |
|
|
|
