HDMI Extender
(By CAT-5E cable)
P/N: HCL0101
INTRODUCTION
Bridging’s HCL0101 is a HDMI extender while using CAT-5E
cable as transmission media.
Benefits from using HCL0101：
1) The length of HDMI cable is fixed and unchangeable
after it is produced. Because the HDMI connector can
only be soldered or terminated by professional worker in
factory, the users can not reduce or increase by
themselves. However CAT5E cables are available
everywhere and be processed easily by the user or
installer.
2) When cabling in hidden method, because the header of
long HDMI cable is big, and so is the cable. So it is
not easy to bend the HDMI cable and pull it through the
in-wall tube or tray. However, CAT-5E cable has no such
problem.
3) By using HCL0101, the transmission distance can up
to 30 meters. For general HDMI cables, cables must be
customized when the length over 10 meters.
FEATURES
-One pair as a full functional module, no need of
setting.
-Use CAT-5E cable to substitute HDMI cable to achieve
long distance transmission.
-Follow the standard of IEEE-568B.
-Transmission distance reaches up to 30 meters.
-Auto-adjustment of feedback, equalization and amplify,
the user does not need to care about
the length of the cable.
-Compact size.
-Signaling rates up to 2.25Gbits in support of 1080P
display.
-Each port supports HDMI or DVI inputs.
-HDCP compliant.
Notice
Bridging (HK) Limited
reserves the right to make
changes in the hardware, packaging and any accompanying
documentation without prior written notice.
PACKAGE CONTENTS

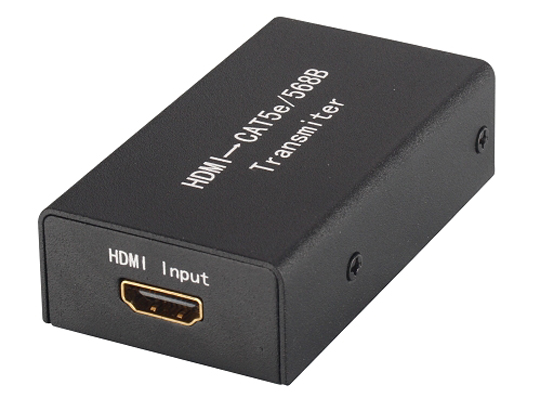

1) Main unit NO. 1 P/N_HCL0101A

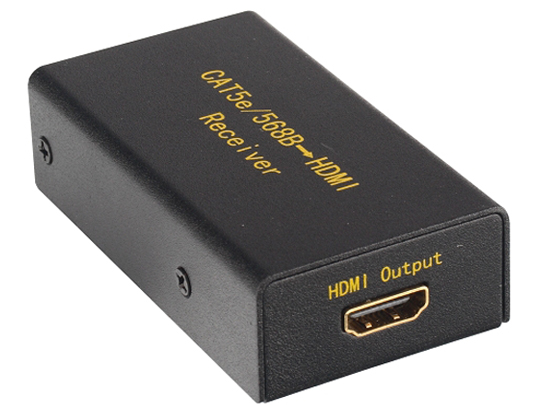

2) Main unit NO. 2 P/N_HCL0101B
3) 5VDC Power Supply.
4) Operating Instructions.

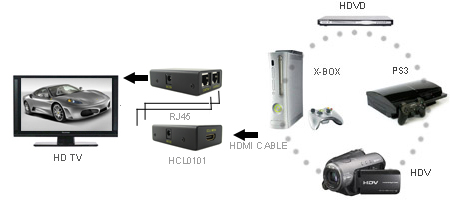

CONNECT AND OPERATE
1) Connect the HDMI input sources such as：HD-DVD,PS3,STB
etc.)
into P/N_HCL0101A.
2) Connect two CAT-5E cables to both the outputs of
P/N_HCL0101A
and inputs of P/N_HCL0101B.
3) Connect the HDMI output( such as : HD-LCD、HD-DLP)into
P/N_HCL0101B.
4) Plug the power into P/N_HCL0101B.
SPECIFICATIONS
|
Signal Inputs/Output |
|
|
Input Video Signal |
0.5 -1.0 volts p-p |
|
Input DDC Signal |
5 volts p-p (TTL) |
|
Maximum Single Link Range |
1920X1200, 1080P |
|
Output Video |
HDMI 1.2a |
|
Video format supported |
|
|
DTV/HDTV |
1080P/1080i/720P/576P/480P/576i/480i |
|
Transmission distance |
|
|
Using CAT6 Cable |
30M for1080p |
|
Using CAT5e/6 Cable |
60M for 480p |
|
Resolutions(HDTV) |
|
|
Interlaced(50&60Hz) |
480i,576i,1080i |
|
Progressive(50&60Hz) |
480p,576p,720p,1080p |
|
Mechanical |
|
|
Size(W-H-D) |
45mmW x 25mmH x 81mmD |
|
Weight(Net) |
0.246KGs |
|
Power Consumption |
5Watts (max.) |
|
Warranty |
|
|
Limited Warranty |
1 Year Parts and Labor |
|
Environmental |
|
|
Operating Temperature |
0 to +70℃ |
|
Operating Humidity |
10% to 85 % RH (no condensation) |
|
Storage Temperature |
-10℃
to +80℃ |
|
Storage Humidity |
5% to 95 % RH (no condensation) |
|
Power Requirement |
|
|
External Power Supply |
5V DC@2A |
|
Regulatory Approvals |
|
|
Converter Unit |
FCC,CE,UL |
|
Power Supply |
UL,CE,FCC |
|
Accessories Adapter |
|
|
AC Power Adapter |
US standard, UK standard and so
on |
|
User Manual |
|
Notice:
1.In order to achieve the high transmission quality
,please choose the shielded CAT-5e or CAT-6 cable
2.The cables with lower quality will not achieve the
perfect transmission effect and long distance
3.Theoretically the function of the product is normal
when adopt short distance transmission.If the product
cannot transmit long distance,this is to say,there are
quality problems in the transmission cables
 |
|
