Multifunctional Home Theatre Switcher
P/N: C301

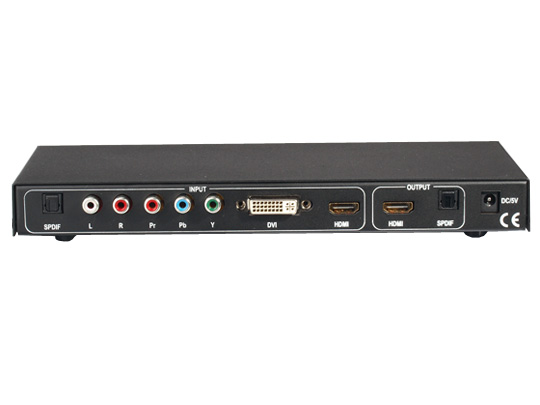

Input: HDMI+DVI+YPbPr+Composite Audio+SPDIF Audio
Output: HDMI+SPDIF Audio
Introduce:
This product is an unique device that allows older
analog devices to be integrated seamlessly into the
modern home theater. It encodes several different
kinds of the video signals (HDMI +DVI+ YPbPr ) onto
the HDMI signals for the full HDMI video and audio
effect. The inputs of the product are equipped with
many popular audio format inputs （Composite Audio +
SPDIF) . With the IR remote, you can easily
switching between different kinds of video formats
and audio formats to the most up-to-date HDMI
format.
The most convenience is here.
The full digital video and audio experience are
here.
Function:
1.Output signal format: HDMI1.3 protocol compliant.
2.Up support Capture 1080p Analog YPbPr Input,
bandwidth 330M, VF 50/60/75HZ.
3.HDCP1.2 protocol compliant.
4.Deep color 36bit support.
5.SPDIF HIFI audio output from HDMI1.3 signal: LPCM/Dolby-AC3/DTS7.1/DSD.
6.Support interfuse SPDIF, convert DVI to HDMI.
7.Support interfuse RL or SPDIF, convert YPbPr/YCbCr
to HDMI.
8.Manual or Remote, Switch input source signal from
HDMI to DVI to YPbPr.

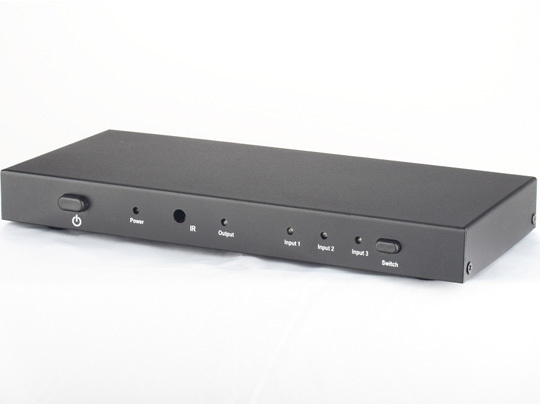

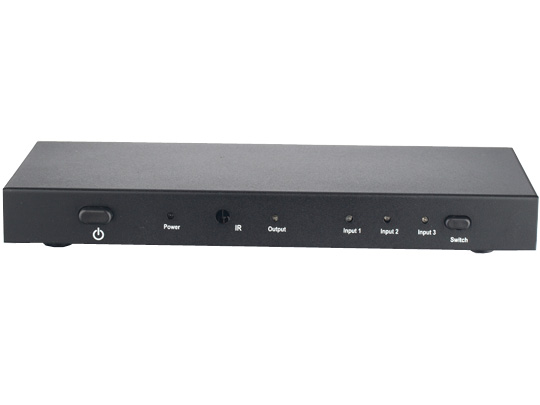

9.LED indication: input source signal selection.
When some source is selected, LED relative to the
source is red. When output is working, LED relative
to the sink is red.
10.DC 5V power supply.
SPECIFICATIONS
|
Signal Inputs/Output |
|
|
Output signal up support |
HDMI1.3 protocol compliant |
|
Maximum Single Link Range |
1920X1200, 1080P |
|
HDCP |
1.1 protocol compliant |
|
YPbPr input |
1080p capture, 50/60/75HZ |
|
Support |
|
|
Support HDMI resolution |
1080P/1080i/720P/576P/576i/480P/480i |
|
Support audio format |
LPCM,Dolby-AC3,DTS7.1,DSD |
|
Resolutions(HDTV) |
|
|
Interlaced(50&60Hz) |
480i,576i,1080i |
|
Progressive(50&60Hz) |
480p,576p,720p,1080p |
|
Warranty |
|
|
Limited Warranty |
1 Year Parts and Labor |
|
Mechanical |
|
|
Size(D-W-H) |
257mm x114mm x26mm |
|
Weight(Net) |
0.832 Kgs |
|
Operating Temperature |
0℃
to +70℃ |
|
Operating Humidity |
10% to 85 % RH (no condensation) |
|
Power Requirement |
|
|
External Power Supply |
5V DC@2A |
|
Regulatory Approvals |
|
|
Converter Unit |
FCC,CE,UL |
|
Power Supply |
UL,CE,FCC |
|
