Multifunctional Home Theatre Switcher
P/N: C300

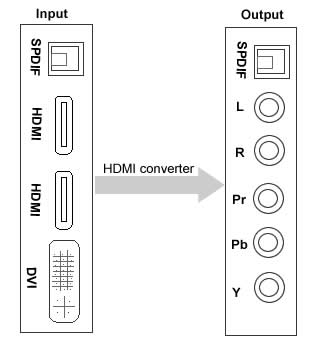

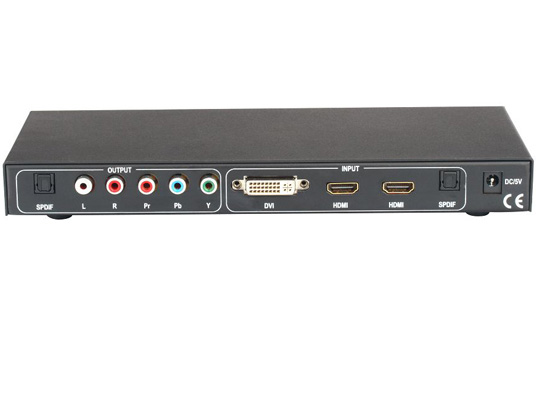

Input: HDMIX2+DVI+SPDIF Audio
Output:YPbPr+Composite Audio+SPDIF Audio)
Introduce:
This product is an unique device that switching the
three HDMI signals source
（HDMI
X2 +DVI+ Audio) and convert to one traditional YPbPr
signals output
with different audio format outputs（Composite
Audio + SPDIF).
The device can easily switching between the digital
signals to analog
signals with the IR remote control.
Function:
1.Input signal format: HDMI1.3 protocol compliant.
2.Output signal up support: Analog YUV 1080P, RL audio,
SPDIF digital audio.
3.Analog bandwidth 330M, VF 50/60/75HZ.
4.HDCP1.2 protocol compliant.
5.Deep color 36bit support.
6.SPDIF HIFI audio output from HDMI1.3 signal: LPCM/Dolby-AC3/DTS7.1/DSD.
7.Support convert DVI to YUV
8.Manual or Remote, Switch input source signal from
2HDMI/ DVI to YUV.

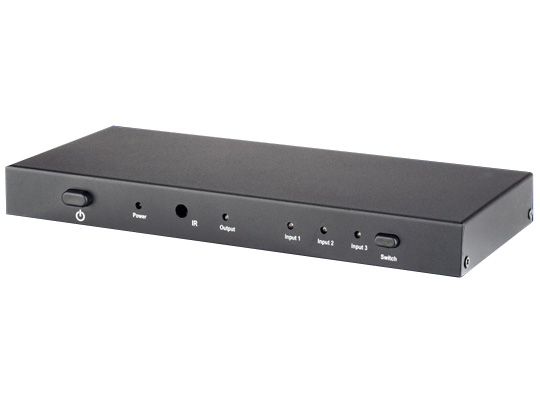

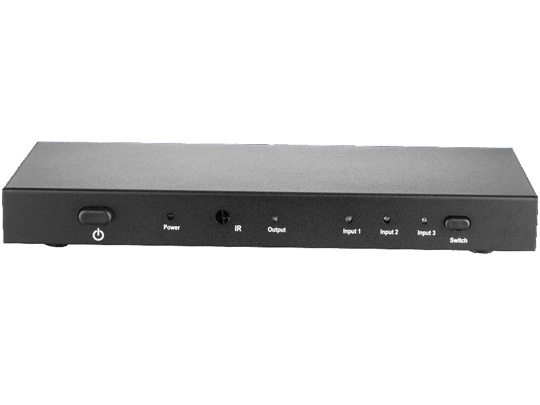

9.LED indication: input source signal selection. When
some source is selected,
LED relative to the source is red. When output is
working, LED relative to the
sink is red.
10.DC 5V power supply.
SPECIFICATIONS
|
Signal Inputs/Output |
|
|
Input signal format |
HDMI1.3 protocol compliant |
|
Output signal up support |
Analog YUV 1080P, RL audio, SPDIF digital audio |
|
Maximum Single Link Range |
1920X1200, 1080P |
|
HDCP |
1.1 protocol compliant |
|
Video format supported |
|
|
VGA |
640x480,800x600,1024x768,1920x1200 |
|
DTV/HDTV |
480i/576i/480p/576p/720p/1080i/1080P |
|
Resolutions(HDTV) |
|
|
Interlaced(50&60Hz) |
480i,576i,1080i |
|
Progressive(50&60Hz) |
480p,576p,720p,1080p |
|
Warranty |
|
|
Limited Warranty |
1 Year Parts and Labor |
|
Mechanical |
|
|
Size(D-W-H) |
257mm
x114mm x26mm |
|
Weight(Net) |
0.856 Kgs |
|
Operating Temperature |
0℃
to +70℃ |
|
Operating Humidity |
10% to 85 % RH (no condensation) |
|
Power Requirement |
|
|
External Power Supply |
12V DC@2A |
|
Regulatory Approvals |
|
|
Converter Unit |
FCC,CE,UL |
|
Power Supply |
UL,CE,FCC |
|
Accessories Adapter |
|
|
AC Power Adapter |
US standard, UK standard and so on |
|
