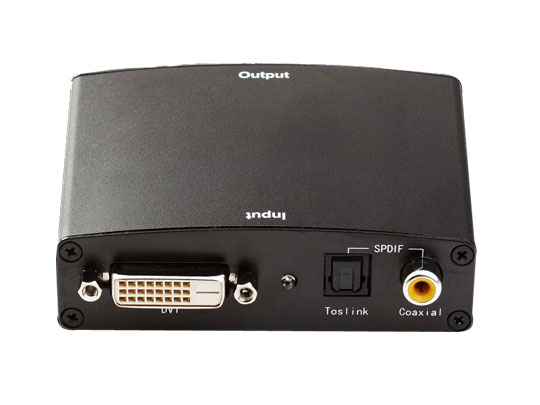

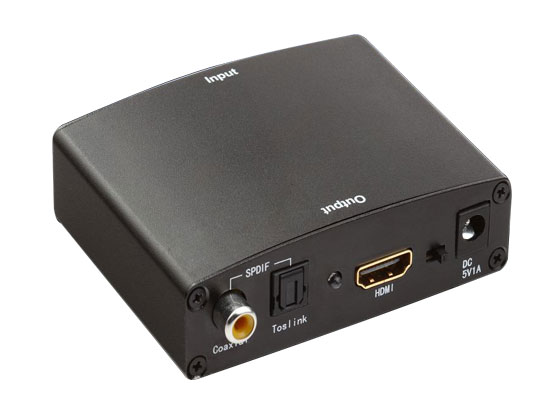

DVI + Audio to
HDMI Converter
P/N: HCD0101
INTRODUCTION
The Bridging’s converter is designed to make your A/V
equipment use more comfortable, more productive and less
expensive. It converts a digital DVI signal and toslink
audio and digital audio input to an HDMI format allowing
the viewing or switching of a digital AV signal on an
HDMI system.
The DVI+Audio to HDMI Converter is an unique device that
combines digital video (DVI) and digital audio into HDMI
to seamlessly integrate into the modern home theaters.
This product not only meets the ideal image of the HDTV
but also meets the need of the enthusiasts’ requirement
for audio. Because It transmits the audio signal by
toslink audio and digital audio.
This DVI+Audio to HDMI Converter offer solutions for
noise, space and security concerns, data center control,
information-distribution, conference-room presentation,
school and corporate training environments.
FEATURES
The series of the Converter have many features that
enable them to perform in a superior manner.
Among those features you will find:
1)Supports HDCP
2)HDMI compliant
3)Toslink Audio and Digital Audio input/output
4)Supports HDTV resolutions
5)Easy to Use: Install in seconds, no need of setting.
6)Supports resolutions up to 1080p, 2K, and 1920 x 1200
7)Encodes digital audio onto the video signal for HDMI™
video and audio
8)Allows you to connect computers or other sources with
DVI output and SPDIF to an HDMI display
SPECIFICATIONS
Signal Inputs/Output
Input Video Signal............................1.2 volts
p-p
Input DDC Signal..............................5 volts
p-p (TTL)
Output
Video..................................HDMI+HDCP1.0/1.1
Video format supported
VGA...........................................640x480,800x600,1024x768,1920x1200
DTV/HDTV......................................480i/576i/480p/576p/720p/1080i/1080P
Connector
HDMI Connector................................type A (19
pin) female
DVI Connector.................................DVI-I (29
pin) female (digital only)
Audio Connector..............................Toslink
Audio and Digital Audio
Operating Frequency
Frequency....................................Up to165Mhz
Resolutions(HDTV)
Interlaced(50&60Hz).........................480i,576i,1080i
Progressive(50&60Hz).........................480p,576p,720p,1080p
Mechanical
Size(W-H-D)...................................5"W x 1"H
x 4"D
Weight for shipping..............................2 lbs
Warranty
Limited Warranty..............................1 Year
Parts and Labor
Environmental
Operating Temperature.........................0 ℃ to
+70℃
Operating Humidity.........................10% to 85 %
RH (no condensation)
Storage Temperature.........................-10℃ to +80℃
Storage Humidity...........................5% to 90 % RH
(no condensation)
Power Requirement
External Power Supply........................5V
DC@2A
Power
Consumption.........................5 watts (max)
Regulatory Approvals
Converter Unit..............................FCC,CE,UL
Power Supply..............................UL,CE,FCC
Accessories Adapter
AC Power Adapter..............................US
standard, UK standard and so on
User Manual...................................English
Version
Note: Specifications are
subject to change without notice.
|
