HDMI 4x2
Switcher-Splitter (Matrix)
P/N:HSS0402
INTRODUCTION
The 4x2 HDMI Matrix routes high
definition video in multiple resolutions up to 1080p
plus multichannel digital audio from any of the four
HDMI sources to the displays.
Two outputs gives you the choice of sending high
definition audio and video signals up to two displays.
Any four to any two matrix switching allows for maximum
versatility for integrated systems.
The 4x2 HDMI Switcher eliminates the need to disconnect
and reconnect sources to a display equipped with one
input. It works with HD-DVD players, TiVo systems, HT
PCs, and satellite set top boxes that connect to an HDMI
display. Every source is accessible at all times by any
display by selecting it with an IR remote.
FEATURES
Switch easily between any four HDMI sources Distributes
any of the four inputs to any or any combination of the
two HDMI output displays Maintains high resolution
video - beautiful, sharp HDTV resolutions up to 1080p,
2k, and computer resolutions up to 1600 x 1200 are
easily achieved
Discrete IR remote (included)
HDMI compliant V1.3
HDCP compliant 1.0/1.1
PACKAGE CONTENTS

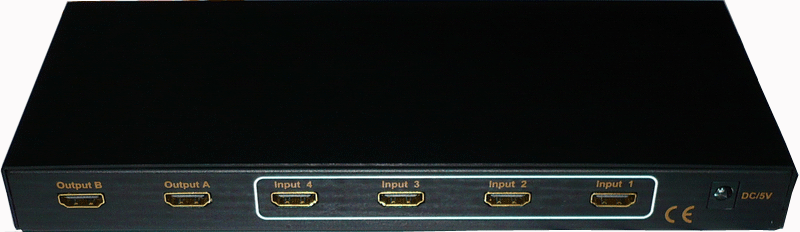

1) Main unit. P/N_HSS0402M
2) 5V DC Power Supply.
3) User’s Manual.
CONNECT AND OPERATE
1) Connect the HDMI input source into HSS0402M. (Input
cables are optional)
*please refer to connection diagram section.
2) Insert the DC side of 5v power supply into HSS0402M
and then connect the AC side of the power supply into
the wall outlet.
3) Turn on the power.
LED indication
When any input source device works or any output sink
devices works (which is connected to
HDMIhome07_metal_4MX2), the color of LED relative to the
device will be red.
When user select one of the input resource output to the
display devices ,the color of LED
for this input interface is blue.
Attention: Insert / Extract
cable gently.
SPECIFICATIONS
Video Amplifier Bandwidth:………………………1.65Gbps/165MHz
Input Video Signal: ………………………………1.2 volts p-p
Input DDC Signal:……………………………………5 volts p-p (TTL)
Single Link Range: …………………………………1080p/1600 x 1200
HDMI Connector: ……………………………………type A 19 pin female
Power Supply: …………………………………………5V DC
Power Consumption: …………………………………20 watts (max)
Dimensions………………………………………………110mmW x 25mmH x 260mmD
Net Weight………………………………………………0.854KGs
Note: Specifications are
subject to change without notice. Weight and dimensions
are approximate.
|
