HDMI 3Ports
Switch(3X1)
P/N:HSW0301

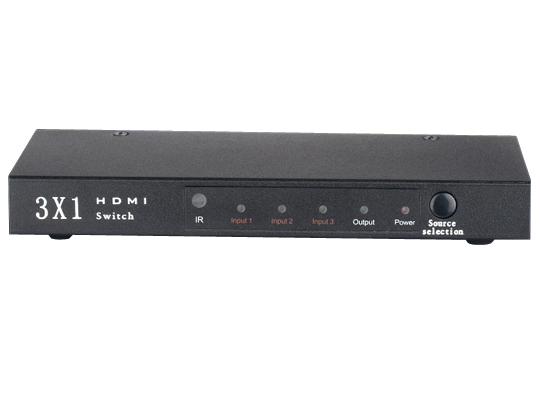

INTRODUCTION
The 3x1 HDMI Switcher routes high definition video (in
multiple resolutions up to 1080p) and digital audio from
any one of the three sources to display unit.
Three inputs accommodate the simultaneous connection of
up to three high definition video sources, such as
satellite systems and HD DVD players.
The output sends the high definition audio/video signals
to a high definition display.
Switching is done via the IR remote that is provided
with the unit.
FEATURES
* Switch easily between any three HDMI sources
* Extends the range of HDMI compliant device by
equalizing and re-clocking the HDMI signal
* Maintains high resolution video - beautiful, sharp
HDTV resolutions up to 1080p, 2k, and computer
resolutions up to 1920 x 1200 are easily achieved
* Discrete IR remote (included)
* HDMI pass-through
* HDCP pass-through

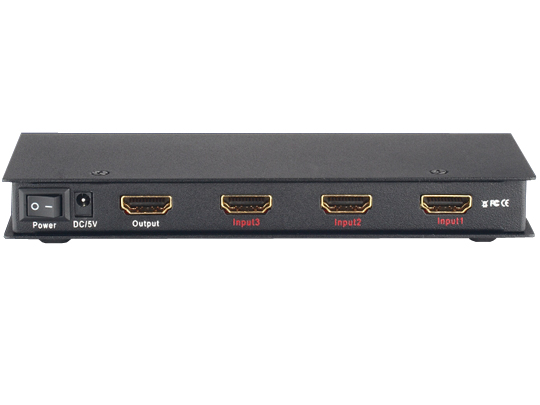

CONNECT AND OPERATE
1) Connect the HDMI input source into HSW0301. (Input
cables are optional)

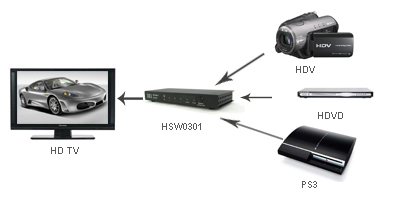

*Please refer to connection diagram section.
2) Insert the DC side of 5v power supply into HSW0301
and then connect the AC side of the power supply into
the wall outlet.
3) Turn on the power.
Attention: Insert / Extract cable gently.
SPECIFICATIONS
|
Signal Inputs/Output |
|
|
Input Video Signal |
0.5-1.0 volts p-p |
|
Input DDC Signal |
5 volts p-p (TTL) |
|
Maximum Single Link Range |
1920X1200, 1080P |
|
Output Video |
HDMI 1.3b + HDCP 1.0/1.1 |
|
Video format supported |
|
|
VGA |
640x480,800x600,1024x768,1920x1200 |
|
DTV/HDTV |
480i/576i/480p/576p/720p/1080i/1080P |
|
Digital Signal I/O |
|
|
HDMI Compliance |
HDMI 1.3b |
|
Operating Frequency |
|
|
Video Amplifier Bandwidth |
2.5Gpbs/250MHz |
|
Frequency |
Up to250MHz |
|
Resolutions(HDTV) |
|
|
Interlaced(50&60Hz) |
480i,576i,1080i |
|
Progressive(50&60Hz) |
480p,576p,720p,1080p |
|
Mechanical |
|
|
Size(H-W-D) |
Different models have different
sizes |
|
Weight(Net) |
Different models have different
weight |
|
Warranty |
|
|
Limited Warranty |
1 Year Parts and Labor |
|
Environmental |
|
|
Operating Temperature |
0
℃
to +70℃ |
|
Operating Humidity |
10% to 85 % RH (no condensation) |
|
Storage Temperature |
-10℃
to +80℃ |
|
Storage Humidity |
5% to 90 % RH (no condensation) |
|
Power Requirement |
|
|
External Power Supply |
5V DC@2A |
|
Regulatory Approvals |
|
|
Converter Unit |
FCC,CE,UL |
|
Power Supply |
UL,CE,FCC |
|
Accessories Adapter |
|
|
AC Power Adapter |
US standard, UK standard and so
on |
|
User Manual |
|
PACKAGE CONTENTS
* The 3x1 HDMI Switcher
* Remote control
* 5VDC Power Supply
* User's Manual
|
