HDMI
Distribution Amplifier(1X8)
P/N:HSP0108

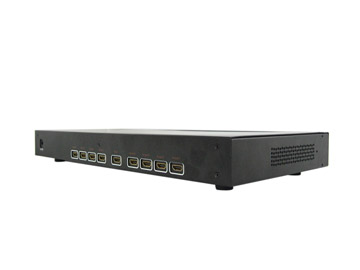

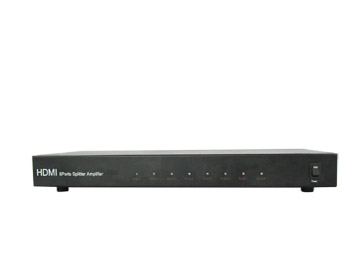

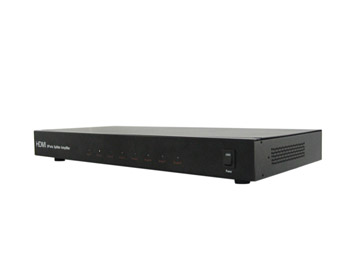

INTRODUCTION
The HSP0108 is an eight outputs HDMI splitter. It
distributes the HDMI input into eight identical outputs.
These eight outputs are synchronized.
HSP0108 has the ability of buffering and amplifying.
Each HSP0108 unit’s output can achieves long distance
transmission of HDMI signal up to 15 meters.
When two or more HSP0108 are cascaded, they can be used
to create a larger distribution and longer length.
HSP0108 offers solutions for HDTV retail and show site,
HDTV, STB, DVD and Projector factory, noise, space and
security concerns, data center control, information
distribution, conference room presentation, school and
corporate training environments.
FEATURES
* Easy to Use: Install in seconds, no need for setting.
* Distribution: 8 identical HDMI outputs.
* Cascaded: Large distribution achieved by cascading
HSP0108.

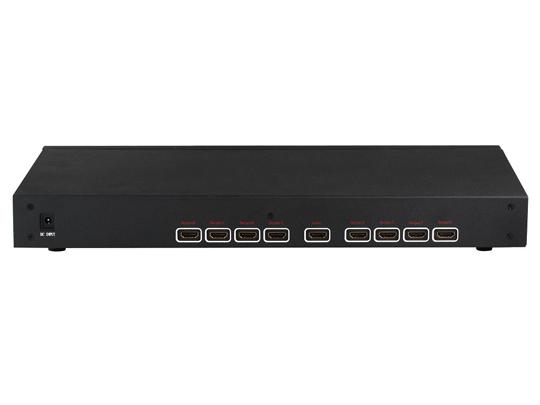

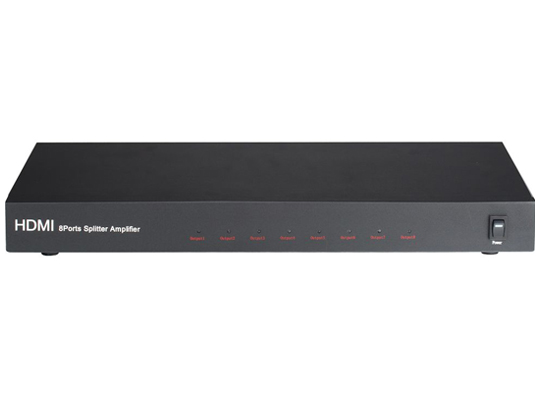

CONNECT AND OPERATE
1) Connect the HDMI input source into HSP0108. (Input
cables are optional)

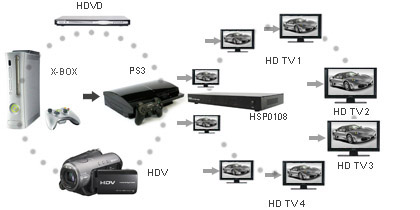

*please refer to connection diagram section.
2) Insert the DC side of 5v power supply into HSP0108
and then
connect the AC side of the power supply into the wall
outlet.
3) Turn on the power.
SPECIFICATIONS
|
Signal Inputs/Output |
|
|
Input Video Signal |
0.5 -1.0 volts p-p |
|
Input DDC Signal |
5 volts p-p (TTL) |
|
Maximum Single Link Range |
1920X1200, 1080P |
|
Output Video |
HDMI + HDCP1.0/1.1 |
|
Video format supported |
|
|
VGA |
640x480,800x600,1024x768,1920x1200 |
|
DTV/HDTV |
480i/576i/480p/576p/720p/1080i/1080P |
|
Digital Signal I/O |
|
|
HDMI Compliance |
HDMI |
|
Operating Frequency |
|
|
Frequency |
Up to165MHz |
|
Resolutions(HDTV) |
|
|
Interlaced(50&60Hz) |
480i,576i,1080i |
|
Progressive(50&60Hz) |
480p,576p,720p,1080p |
|
Mechanical |
|
|
Size(H-W-D) |
Different models have different
sizes |
|
Weight(Net) |
Different models have different
weight |
|
Warranty |
|
|
Limited Warranty |
1 Year Parts and Labor |
|
Environmental |
|
|
Operating Temperature |
0℃
to +70℃ |
|
Operating Humidity |
10% to 85 % RH (no condensation) |
|
Storage Temperature |
-10℃
to +80℃ |
|
Storage Humidity |
5% to 90 % RH (no condensation) |
|
Power Requirement |
|
|
External Power Supply |
5V
DC@2A,except 1*4(2.5A)1*8(3A) |
|
Regulatory Approvals |
|
|
Converter Unit |
FCC,CE,UL |
|
Power Supply |
UL,CE,FCC |
|
Accessories Adapter |
|
|
AC Power Adapter |
US standard, UK standard and so
on |
|
User Manual |
|
|
|
