HDMI
Distribution Amplifier(1X4)
P/N:HSP0104
INTRODUCTION
-The HSP0104 is a four outputs HDMI splitter
-It distributes the HDMI input into four identical
outputs.
-These four outputs are synchronized.
- HSP0104 has the ability of buffering and amplifying
-Series connection of HSP0104 achieves long distance
transmission of HDMI signal of more than 15 meters
-When two or more HSP0104 are cascaded
they can be used to create a larger distribution
-HSP0104 offers solutions for HDTV retail and show site
-HDTV, STB, DVD and Projector factory, noise
-space and security concerns, data center control
-information distribution, conference room presentation
-school and corporate training environments.
FEATURES
* Easy to Use: Install in seconds, no need for setting.
* Distribution: 4 identical HDMI outputs.
* Cascaded: Large distribution achieved by cascading
HSP0104.
* HDCP compliant
* FCC CE Certified

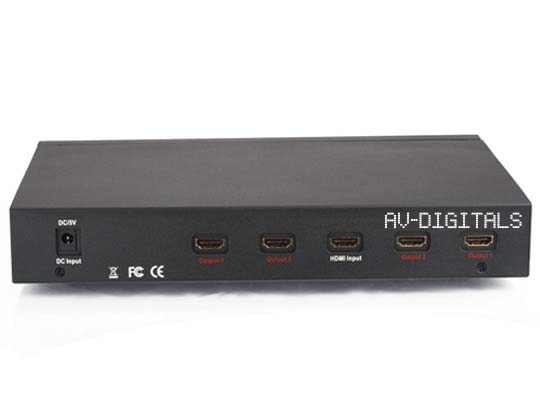

CONNECT AND OPERATE
1) Connect the HDMI input source into HSP0104. (Input
cables are optional)

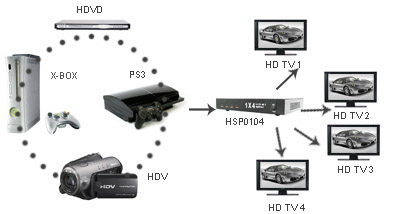

please refer to connection diagram section.
2) Insert the DC side of 5v power supply into HSP0104
and then
connect the AC side of the power supply into the wall
outlet.
3) Turn on the power.
SPECIFICATIONS
Signal Inputs/Output |
|
Input Video Signal |
0.5 -1.0 volts p-p |
Input DDC Signal |
5 volts p-p (TTL) |
Maximum Single Link Range |
1920X1200, 1080P |
Output Video |
HDMI + HDCP1.0/1.1 |
Video format supported |
|
VGA |
640x480,800x600,1024x768,1920x1200 |
DTV/HDTV |
480i/576i/480p/576p/720p/1080i/1080P |
Digital Signal I/O |
|
HDMI Compliance |
HDMI |
Operating Frequency |
|
Frequency |
Up to165MHz |
Resolutions(HDTV) |
|
Interlaced(50&60Hz) |
480i,576i,1080i |
Progressive(50&60Hz) |
480p,576p,720p,1080p |
Mechanical |
|
Size(H-W-D) |
Different models have different
sizes |
Weight(Net) |
Different models have different
weight |
Warranty |
|
Limited Warranty |
1 Year Parts and Labor |
Environmental |
|
Operating Temperature |
0℃
to +70℃ |
Operating Humidity |
10% to 85 % RH (no condensation) |
Storage Temperature |
-10℃
to +80℃ |
Storage Humidity |
5% to 90 % RH (no condensation) |
Power Requirement |
|
External Power Supply |
5V
DC@2A,except 1*4(2.5A)1*8(3A) |
Regulatory Approvals |
|
Converter Unit |
FCC,CE,UL |
Power Supply |
UL,CE,FCC |
Accessories Adapter |
|
AC Power Adapter |
US standard, UK standard and so
on |
User Manual |
|
|
|
